BUILD TIME: APPROXIMATELY 2-3 WEEKS.

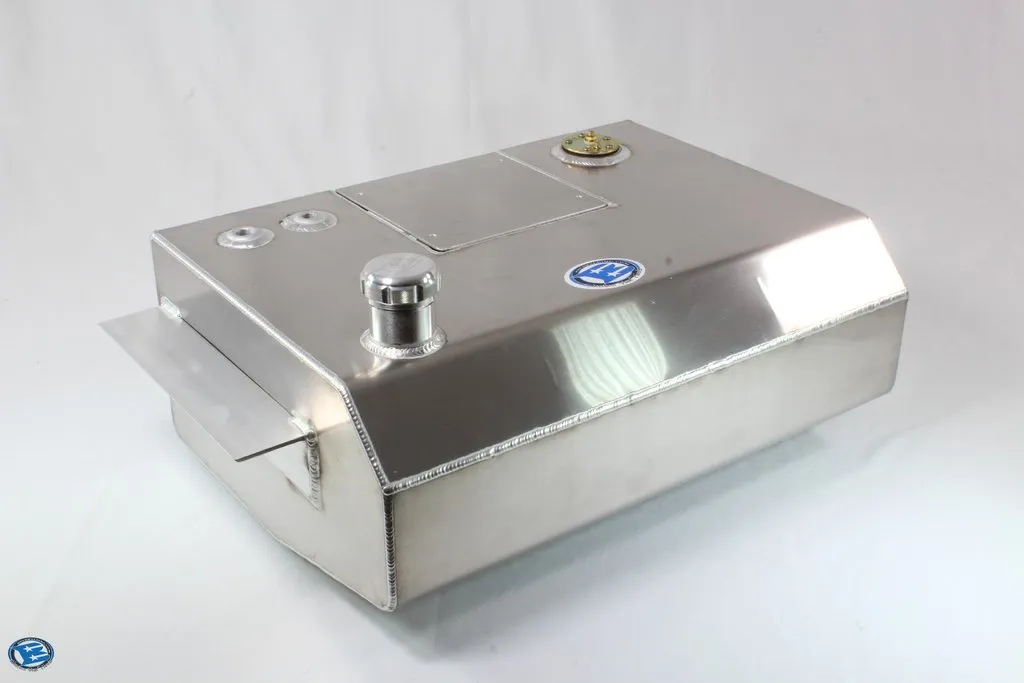

- Tank Dimensions: 26.5 x 19 x 10
- Tank Material: .125 Aluminum
- CNC Machined Non Vented / Threaded Cap

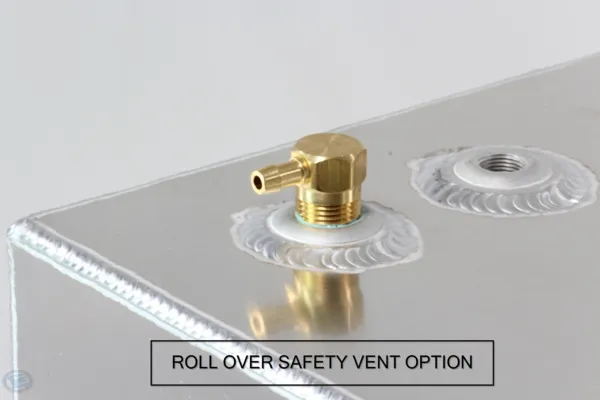

- 1/2" NPT Vent
- 3/8" NPT Return
- 3 Baffles

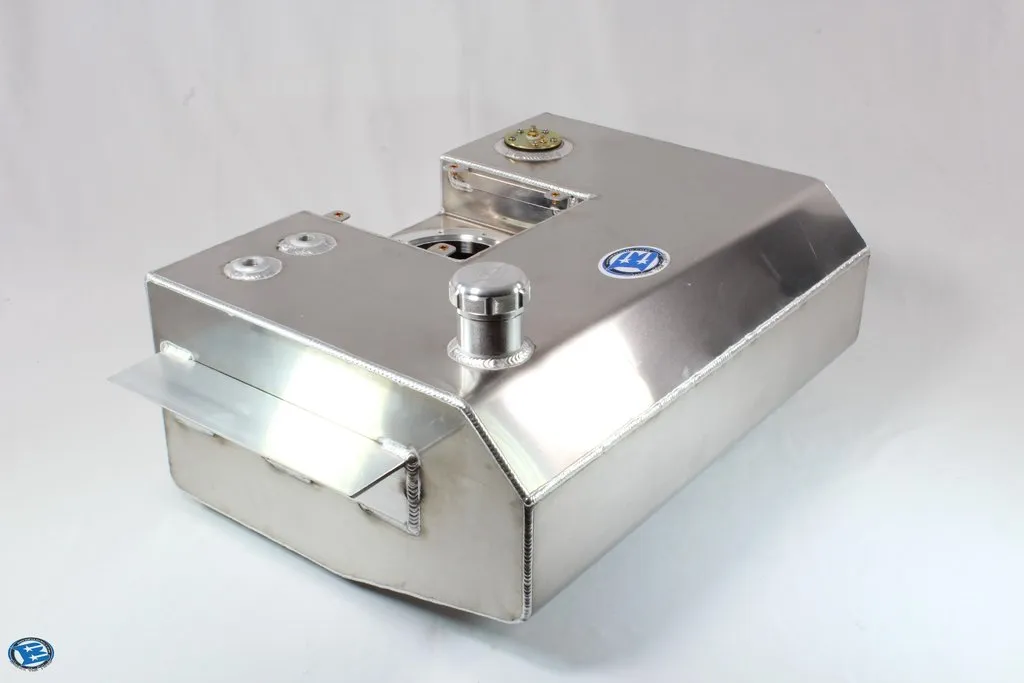

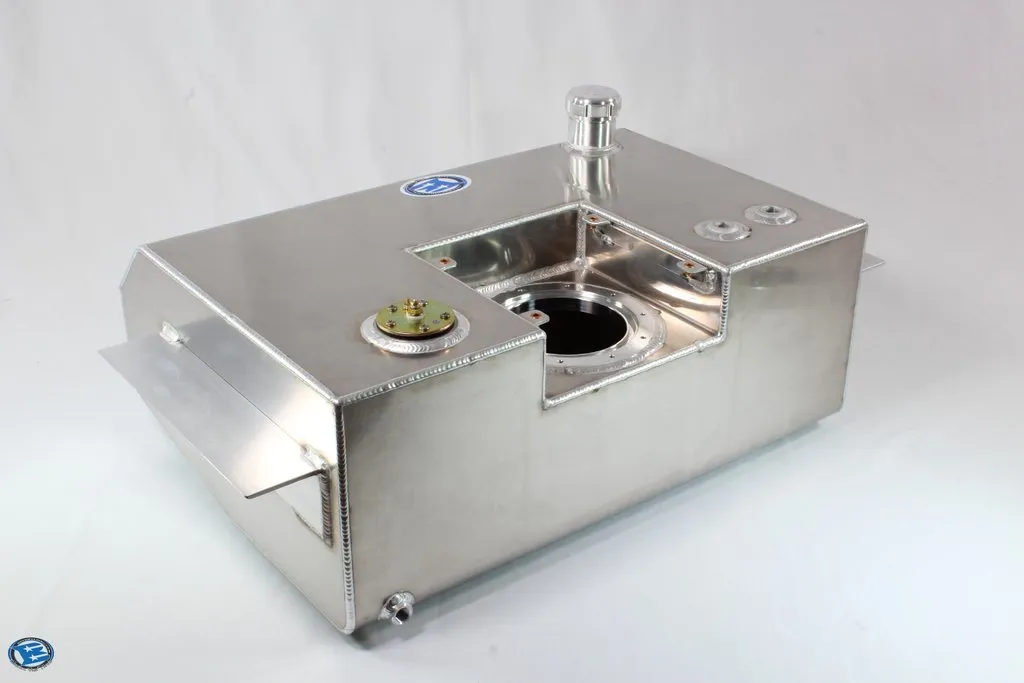

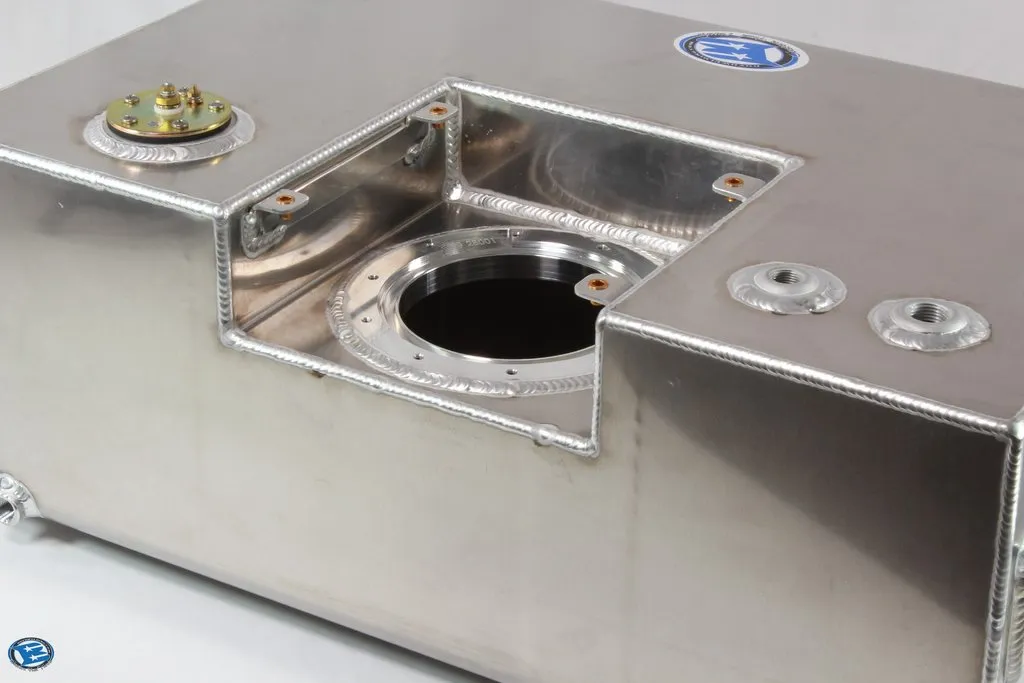

- This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly.  (NOT INCLUDED) this pump has proven to be very reliable and will run pretty much any LS or Coyote engine.

Note:  This tank will ONLY work with the MU2101 pump assembly (NOT INCLUDED).

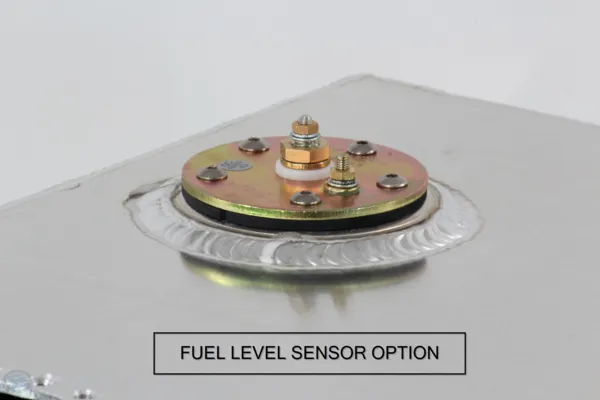

- It is not possible to use the OEM fuel level sensor that is supplied with the pump module.  since the tank height is different from stock and is custom built into a pocket the sensor float will hit baffling and will not read the fuel level properly.

*2021 REVISION - 3/8" NPT DRAIN REMOVED.
